380v Soft Drink Filling Machine
Carbonated Soft Drink Filling Machine Features
a. The application of alarm devices for bottle jam,bottle shortage.bottle demage,cap shortage,over loading etc,in several places ensure the quality of its production.
b. The machine obtains advantages of high reliability ,high efficiency, high grade of automation and easy operation,etc.
c. This Carbonated Soft Drink Filling Machine adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping.
d. It is equipped with CO2 accuracy pressure control,so that the liquid level is always stable.
II. Carbonated Soft Drink Filling Machine Technical Parameters:
| Model | CGFD8-8-3 | CGFD12-12-6 | CGFD18-18-6 |
| washing, filling and capping heads No. | 8-8-3 | 12-12-6 | 18-18-6 |
| Capacity | 1500~2000BPH | 3000~3500BPH | 4000~5000BPH |
| Bottle Volume Range | volume=330-2000ml | φ=50-110 H=150~340mm volume=330-2500ml |
| Motor power(kw) | Main motor | Main motor 3.5kw | Main motor 4.0kw |
| Overall dimensions (mm) | 1.9kw | 2450*1800*2400 | 2650*1900*2400 |
| Weight (kg) | 1900*1420*2000 | 2500 | 3500 |
| |
| Model | CGFD 32-32-8 | CGFD 40-40-10 | CGFD 50-50-12 |
| washing, filling and capping heads No. | 32-32-8 | 40-40-10 | 50-50-12 |
| Capacity | 8000-10000BPH | 10000-12000BPH | 12000-15000BPH |
| Bottle Volume Range | volume=330-2000ml | φ=50-110 H=150 ~340mm volume=330-2500ml |
| Motor power(kw) | Main motor 7.6kw | Main motor 8.3kw | Main motor 9.6kw |
| Overall dimensions (mm) | 4100*2000 *2400 | 4550*2650 *2400 | 5450*3210 *2400 |
| Weight (kg) | 6500 | 8500 | 9800 |
Out Look
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system
Bottle Inlet (Air Conveyor)
➢All Stainless Steel 304 include the all the connection parts and bottle exchange part .
➢Big motor Air fan
➢Steady running for the machine . Strong Machine . Can be customizer the length and design .
Washing Station
➢ All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
➢ 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
➢ 304 stainless steel washing pumps
Filling Station

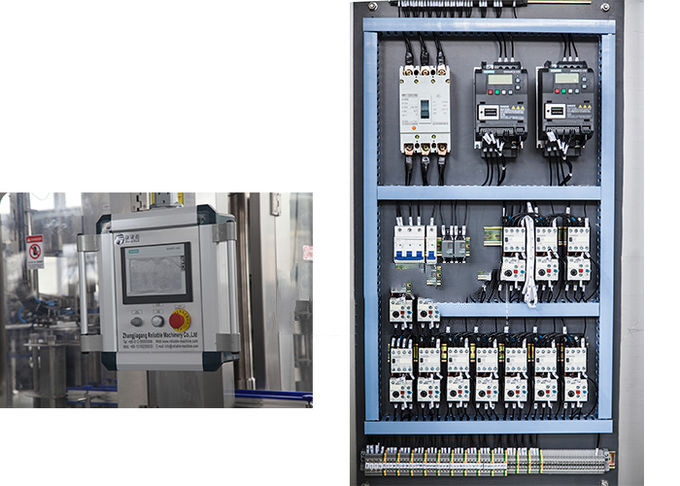

➢ High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
➢ All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
➢ No bottle no filling
Capper Station
➢ Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
➢ All 304stainless steel construction
➢ No bottle no capping
